M 系列灯珠维修测试仪M-series bead testers

面向维修师傅的隔离型 LED 灯珠 / 电视背光维修仪：免拆屏点亮、变压器隔离更安全、硬件缓输出保护灯珠。系列含 MCA220、MCT220 与旗舰 MCL300。

Isolated LED bead and TV backlight testers for repair benches: light panels without removing the LCD, transformer isolation for safer handling, and soft-start output that protects beads. The line covers MCA220, MCT220 and the flagship MCL300.

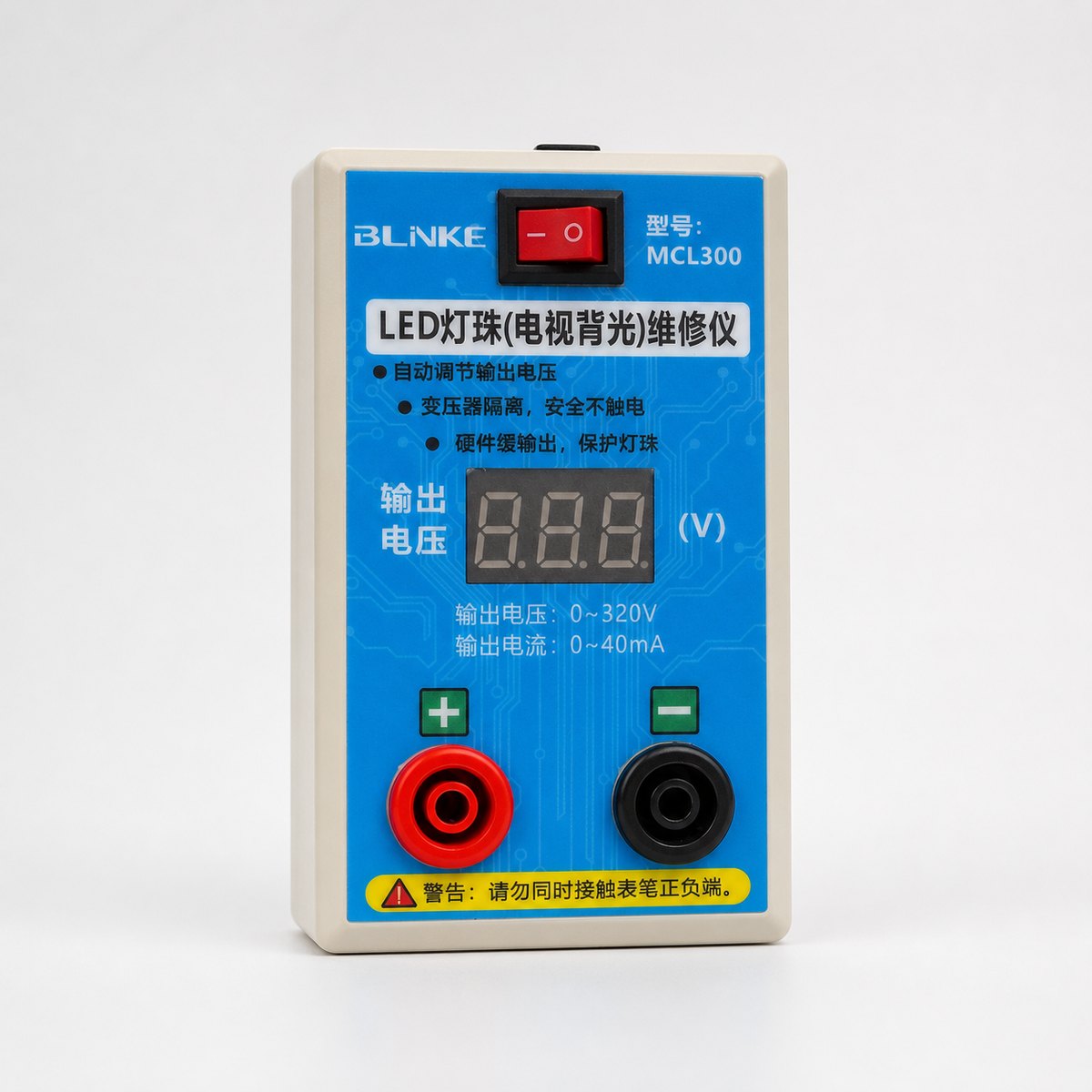

BLINK MCL300 LED bead and TV backlight tester

MCA220 · MCT220 · MCL300

系列共同特点

Shared highlights

免拆屏：表笔接灯条口即可点亮，不必拆开液晶屏
变压器隔离：输出与市电隔离，单触一极更安全（仍严禁同时触碰正负极）
缓输出保护：硬件缓升电压，降低烧灯珠风险
自动适应：自动调节输出电压，适配不同灯串
维修台友好：体积小、插电即用，配套万用表笔

No panel teardown: probe the strip connector and light the beads without removing the LCD
Transformer isolation: safer single-pole contact (never touch both poles)
Soft output ramps voltage in hardware to protect beads
Auto matching of output voltage to the string under test
Bench-ready: compact, plug-in use with multimeter-style probes

中文说明书 PDFChinese manual

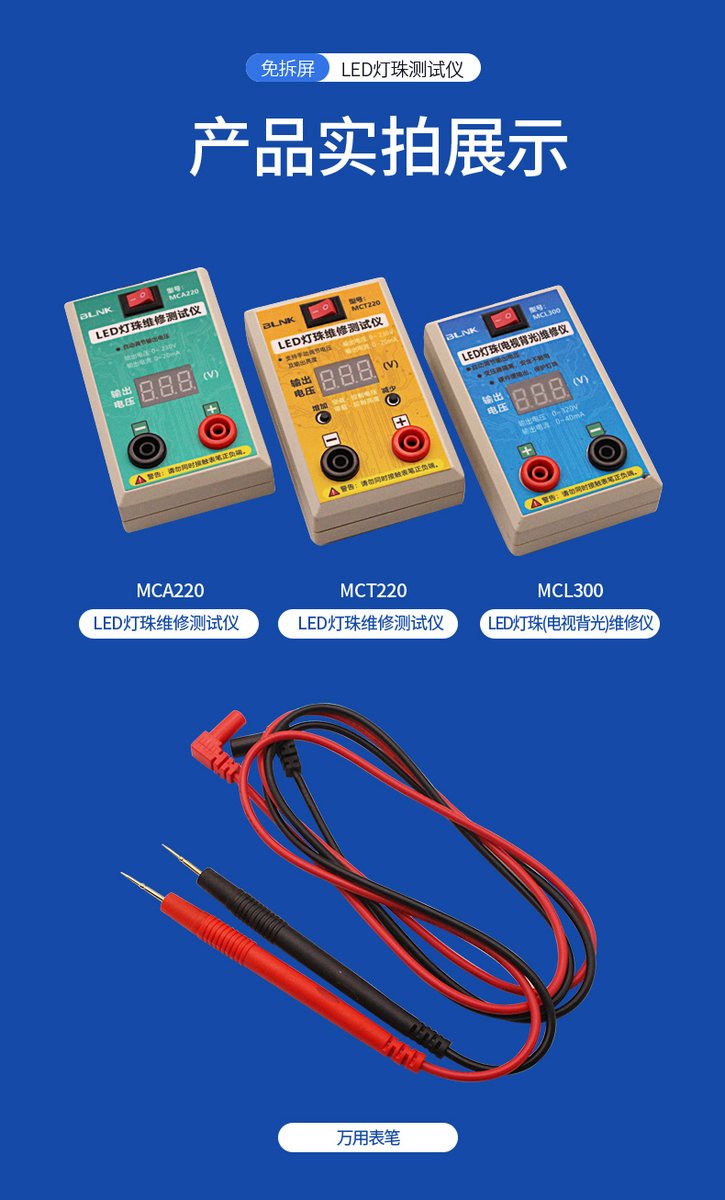

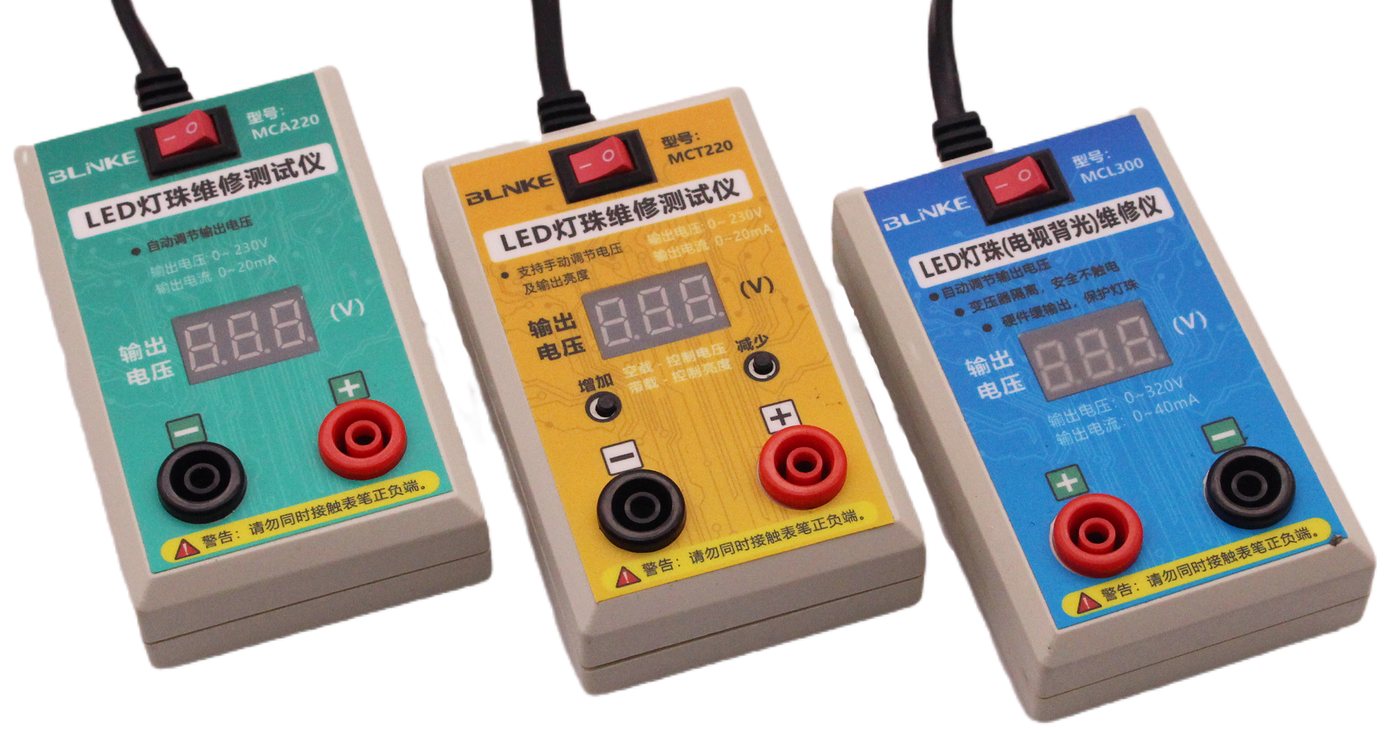

三款型号对照

Three models

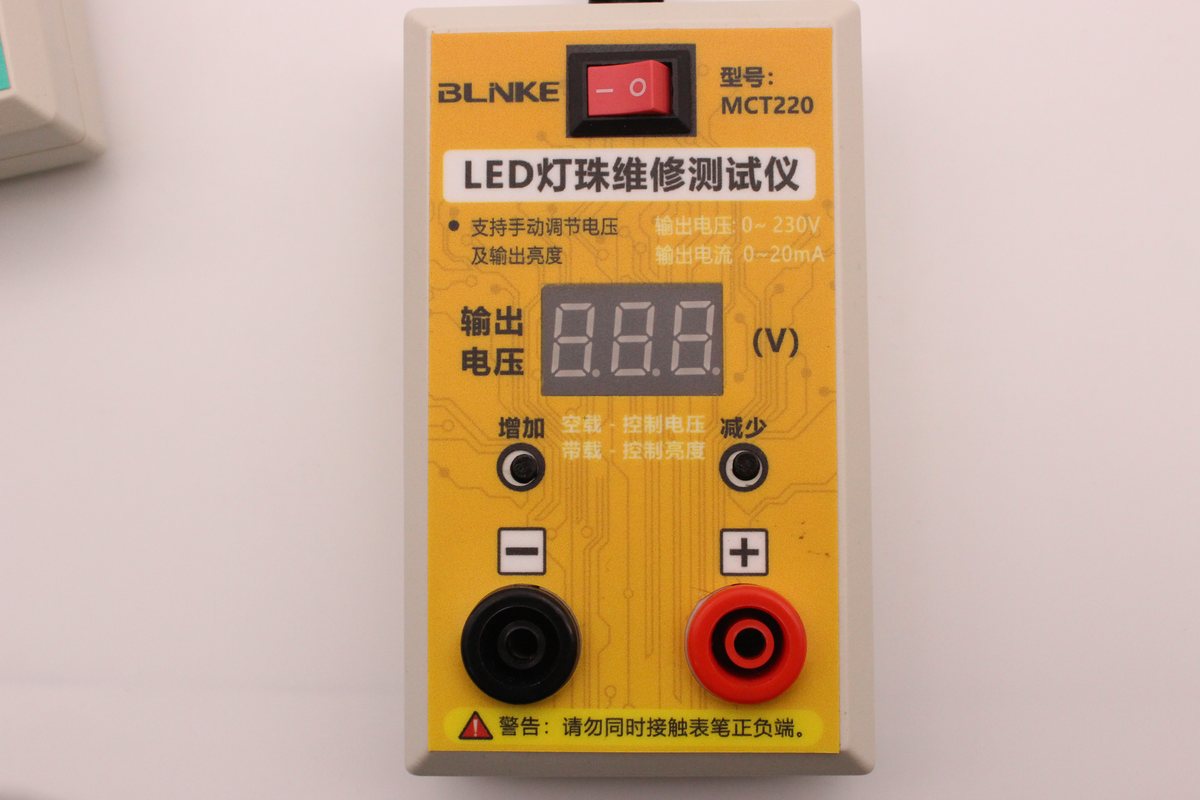

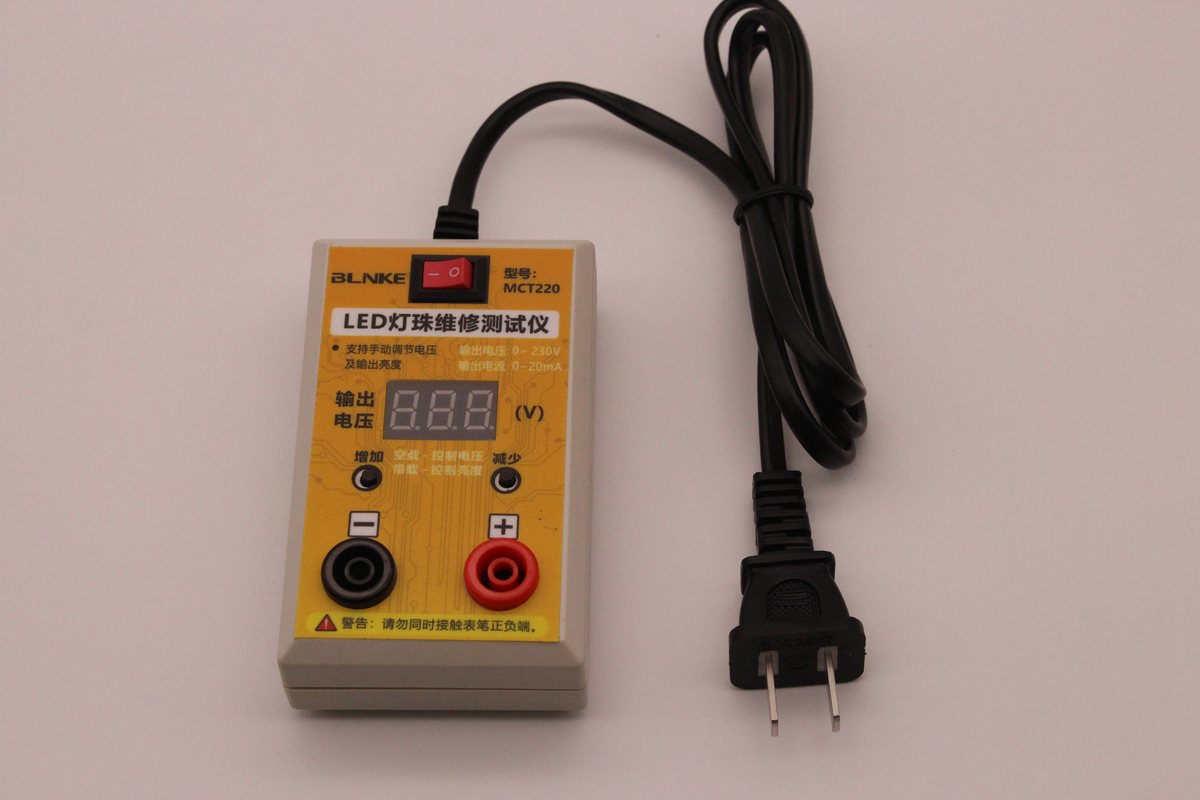

MCT220 LED bead tester — MCT220 · 可按键调压调亮

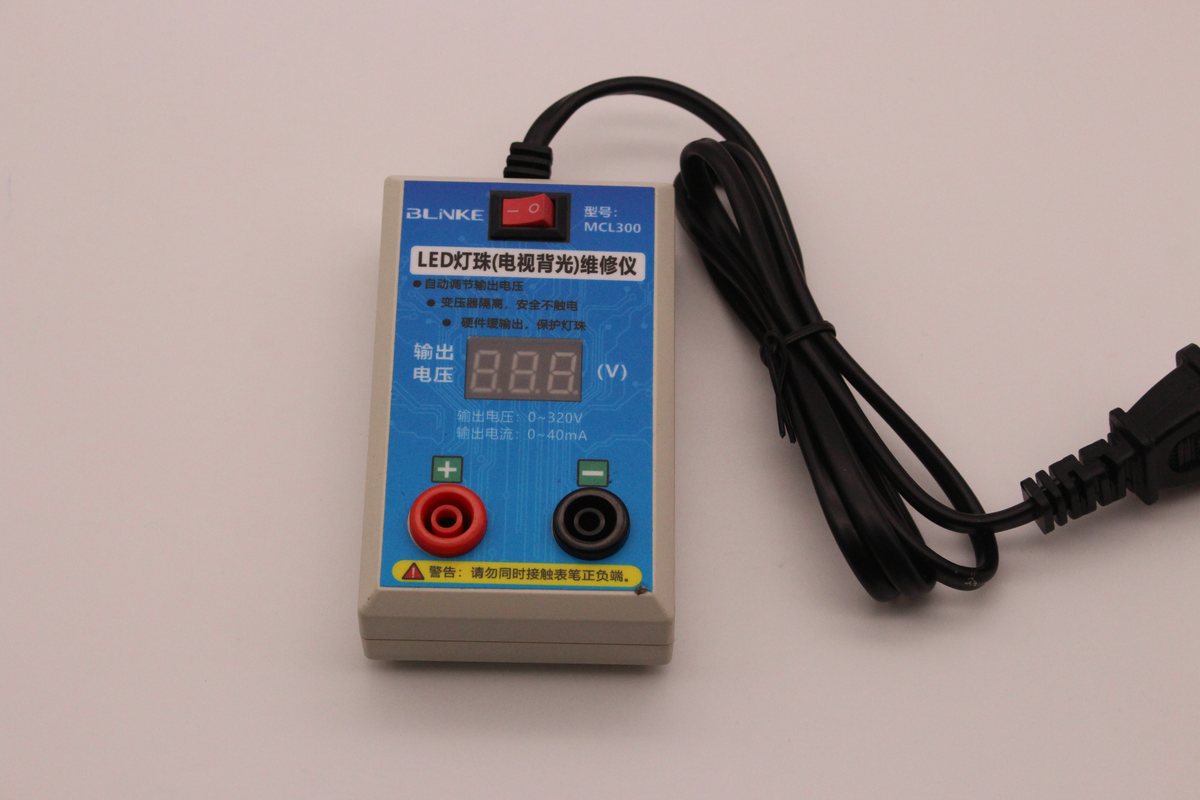

MCL300 LED bead and backlight tester — MCL300 · 高电压隔离旗舰

型号Model	输出电压Voltage	输出电流Current	调节方式Control	定位Role
MCA220	0~230V	0~20mA	自动调节输出电压Auto voltage	入门维修Entry repair
MCT220	0~240V	0~25mA	支持按键手动调电压与亮度Button V / brightness	精细调光Fine control
MCL300	0~320V	0~40mA	自动调压；全隔离 + 缓输出Auto; full isolation + soft start	高电压背光旗舰，测量精度 0.01VHigh-V backlight flagship, 0.01V

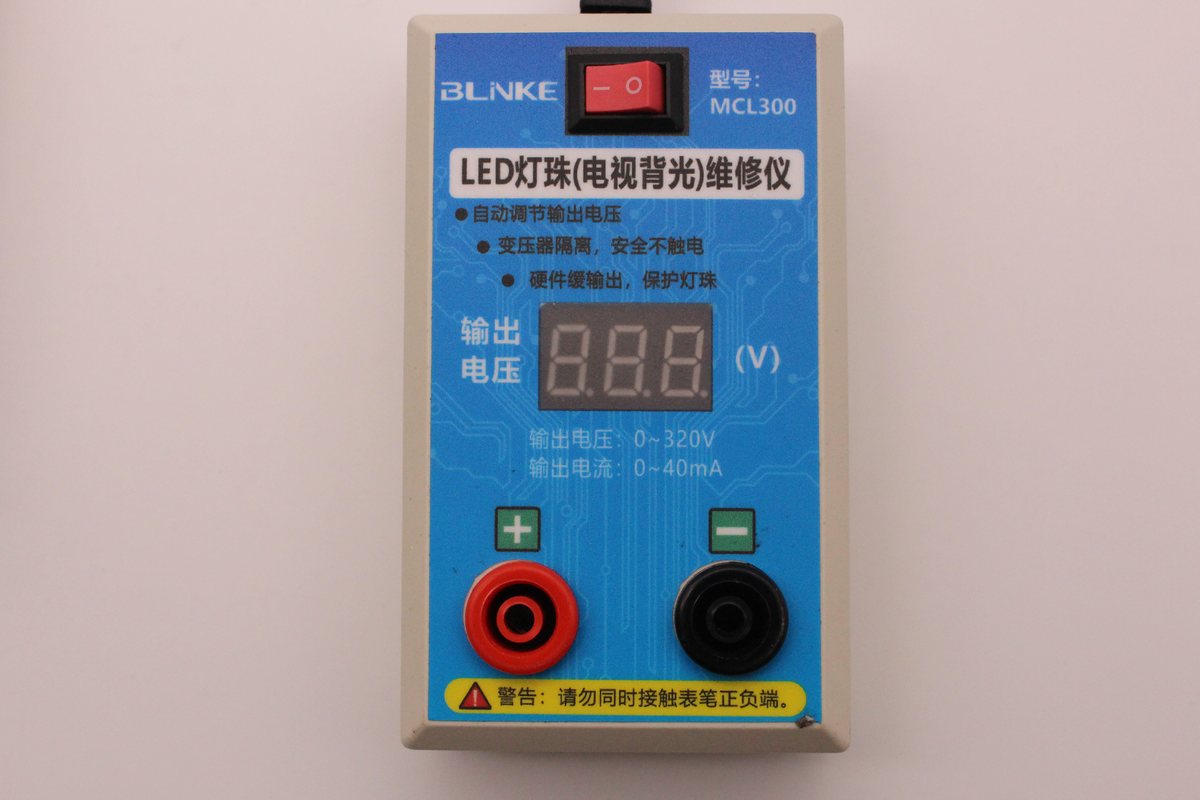

旗舰 MCL300 要点

MCL300 highlights

输出电压 0~320V、输出电流 0~40mA，覆盖更高串数灯板
变压器全隔离，面板强调安全不触电
硬件缓输出，降低烧灯珠风险
测量精度可达 0.01V；支持全系列灯板超高亮度点亮
警告：请勿同时接触表笔正负端

0~320V / 0~40mA for longer backlight strings
Full transformer isolation for safer bench work
Hardware soft-start protects beads
Voltage resolution down to 0.01V; high brightness across panel families
Warning: never touch both probe tips at once

Related products

若需要更大电流或双表显示，可看 CB250 / CF300；小体积自动点灯也可参考 CX300。

For higher current or dual meters see CB250 / CF300; for a compact auto lighter see CX300.
