便携灯珠 / 背光测试
Portable bead / backlight tester
八大特色（说明书）
Eight highlights (manual)
- 免拆屏测试：测试电视背光时无需拆屏
- 短时反接保护：灯串短时反接通常不损坏；单颗低功率 LED 避免反接
- 双显示：同时显示输出电压与输出电流
- 高压高亮：0~320V 输出，兼容点亮全部型号灯板
- 隔离限流设计：降低误操作风险，但输出仍为高压
- 灯光渐亮：缓升输出保护眼睛，也保护灯珠
- 智能调整：电压电流按 LED 灯珠数自动调整
- 两档电流切换：适配不同负载
- No teardown: test TV backlight without removing the panel
- Brief reverse tolerance: strings are usually protected; avoid reversing single low-power LEDs
- Dual readout: output voltage and current shown together
- 0~320V output lights virtually any LED board type
- Isolation and current limiting reduce risk, but the output remains high voltage
- Gradual brightening protects eyes and beads
- Smart adjustment follows the number of beads in the string
- Two current ranges for different loads

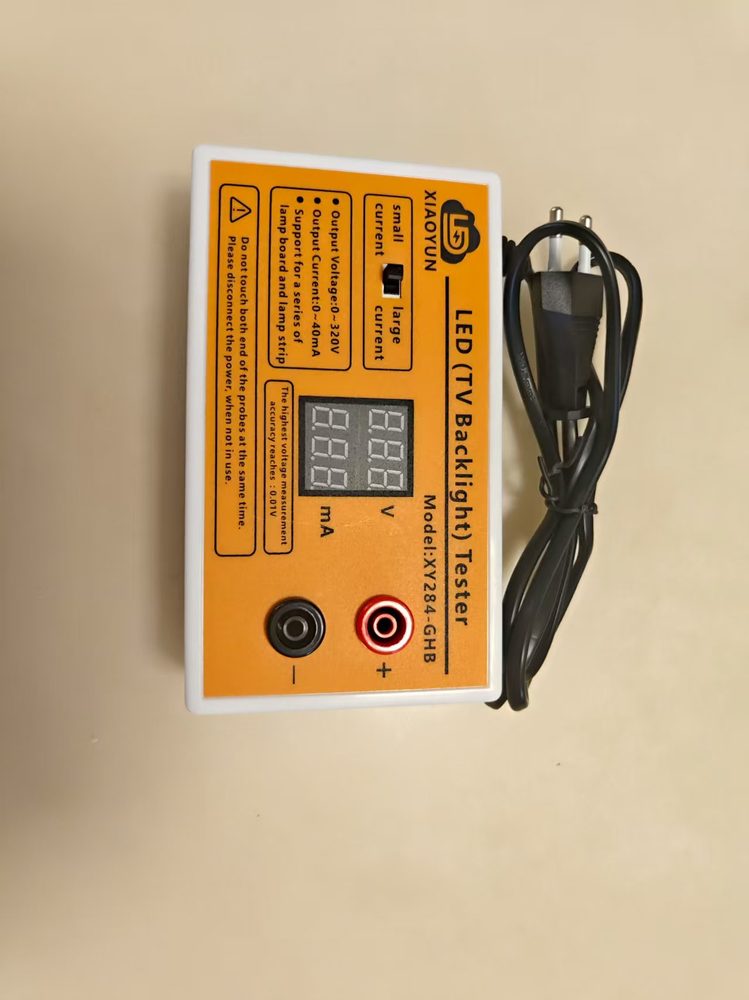

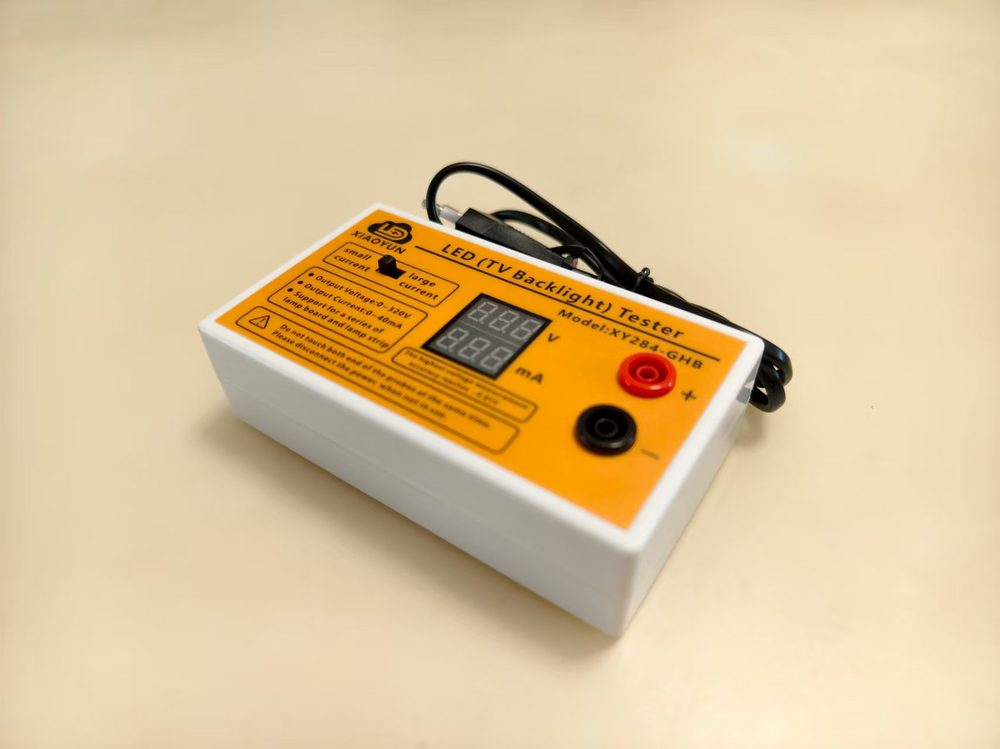

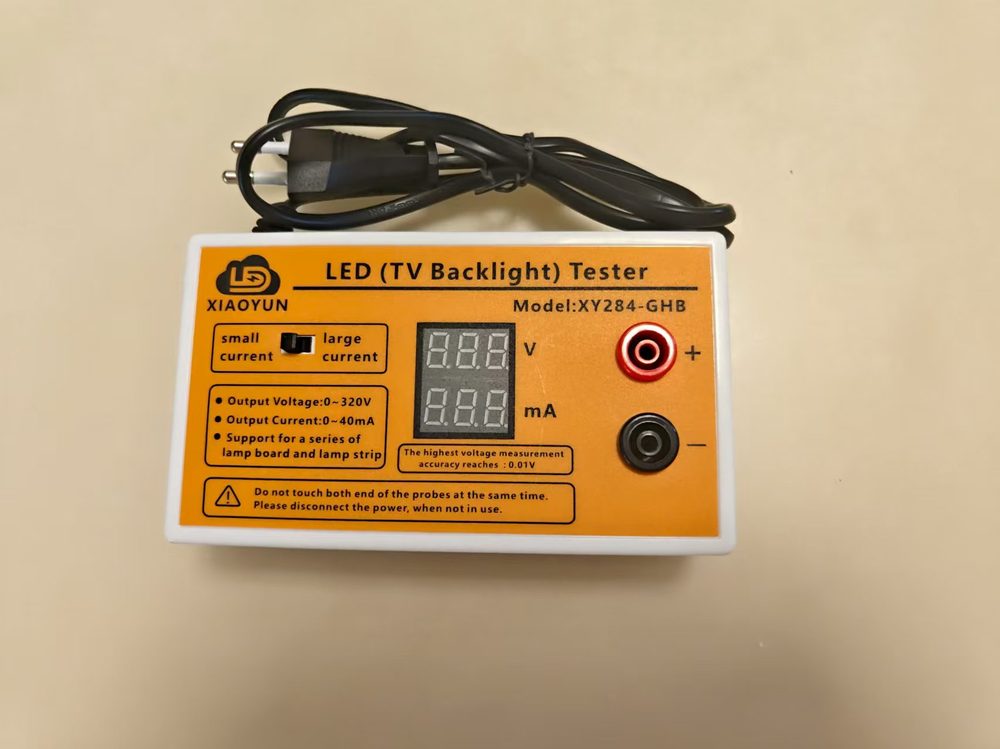

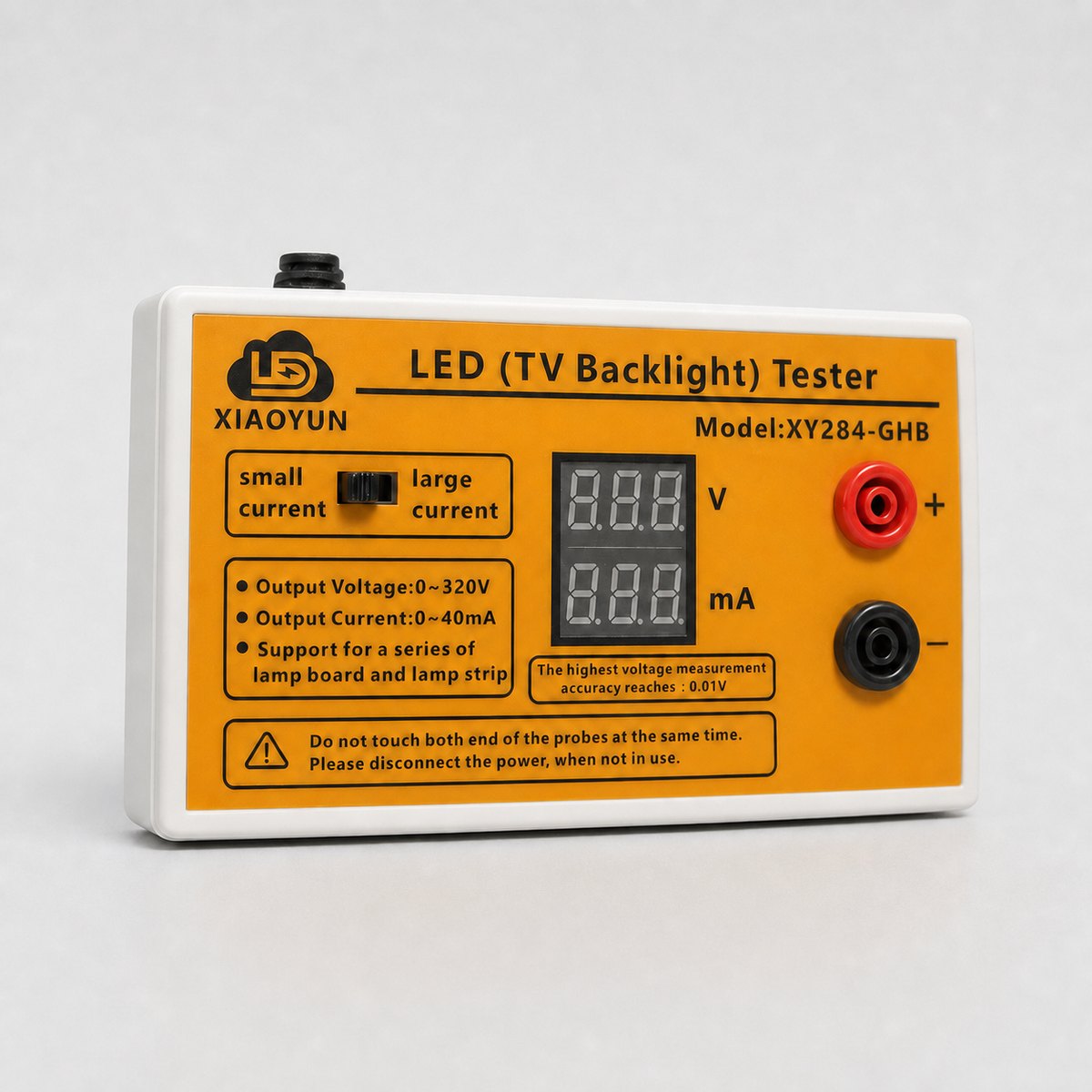

产品多视角
Product views
电气参数（说明书摘录）
Electrical specs (from manual)
| 型号Model | CX300 / XY284CX300 / XY284 |
|---|---|
| 供电Supply | AC 85~265V |
| 输出电压Output voltage | 0~320V |
| 输出电流Output current | 0~40mA，两档切换0~40mA, two ranges |
| 显示Display | 输出电压 + 输出电流Output voltage + current |
| 隔离Isolation | 变压器冷热隔离Transformer isolation |
| 缓升时间Ramp time | 约 3~5 秒由微亮升至高亮Approx. 3~5s from dim to full |
使用要点
How it works
- 接入 AC85~265V，稍等片刻，待电压显示达到最高 320V 后插上红黑表笔
- 红黑表笔分别接触 LED 光源正负极，光源在约 3~5 秒内由微亮缓升至稳定高亮
- 觉得亮度合适时可提前移开表笔，下一次测试重复上述过程即可
- 输出电压自动适应，电流由小到大缓升，短时接反灯串一般不会烧灯珠
- Connect AC85~265V, wait until the display reaches 320V, then plug in the probes
- Touch the probes to the LED terminals; brightness ramps up over about 3~5 seconds
- Lift the probes once brightness looks right, then repeat for the next test
- Voltage auto-adapts and current ramps gently, so brief reverse hook-up rarely burns a string
注意：质量较差的小功率单颗灯珠仍可能被反向击穿，单颗灯珠不建议尝试反接。
Note: weak single low-power beads may still break down in reverse, so avoid reversing individual beads.
免拆屏测试背光
Backlight test without teardown
- 将恒流板和灯条的接口插座拔开
- 将红黑表笔分别对应插入 LED 灯条接口的正负极
- 打开电视机电源，使电视机（除恒流板以外）正常上电
- 灯条、液晶屏、主板与逻辑板都正常时可看到画面，亮度略低于原机属正常
- 同一电视每组灯条电压应相同，误差超过 3V 则该灯条可能存在问题
- Unplug the connector between the constant-current board and the strips
- Insert the red/black probes into the strip connector polarity
- Power on the TV so everything except the CC board runs normally
- A normal picture appears if the strips, panel, mainboard and T-con are fine
- Strip voltages on one TV should match; a gap over 3V points to a faulty strip
读数判读技巧
Reading the results
- 显示电压等于开路电压：被测灯条可能接反或有开路故障
- 显示电压为 000V：被测灯条或灯珠短路
- 测试两个无电气连接的对象时电压明显低于开路电压：两者之间存在漏电
- Reading equals open-circuit voltage: reversed polarity or an open circuit
- Reading is 000V: the strip or bead is shorted
- Voltage clearly below open-circuit across unconnected parts: leakage between them
包装与安全
Packing and safety
- 出口纸箱印 LED LAMP BEAD TESTER，适合外贸整箱发运
- 30 台 / 箱：45.5 × 34 × 41 cm，约 8.7kg；50 台 / 箱：59 × 45 × 41 cm，约 14.2kg

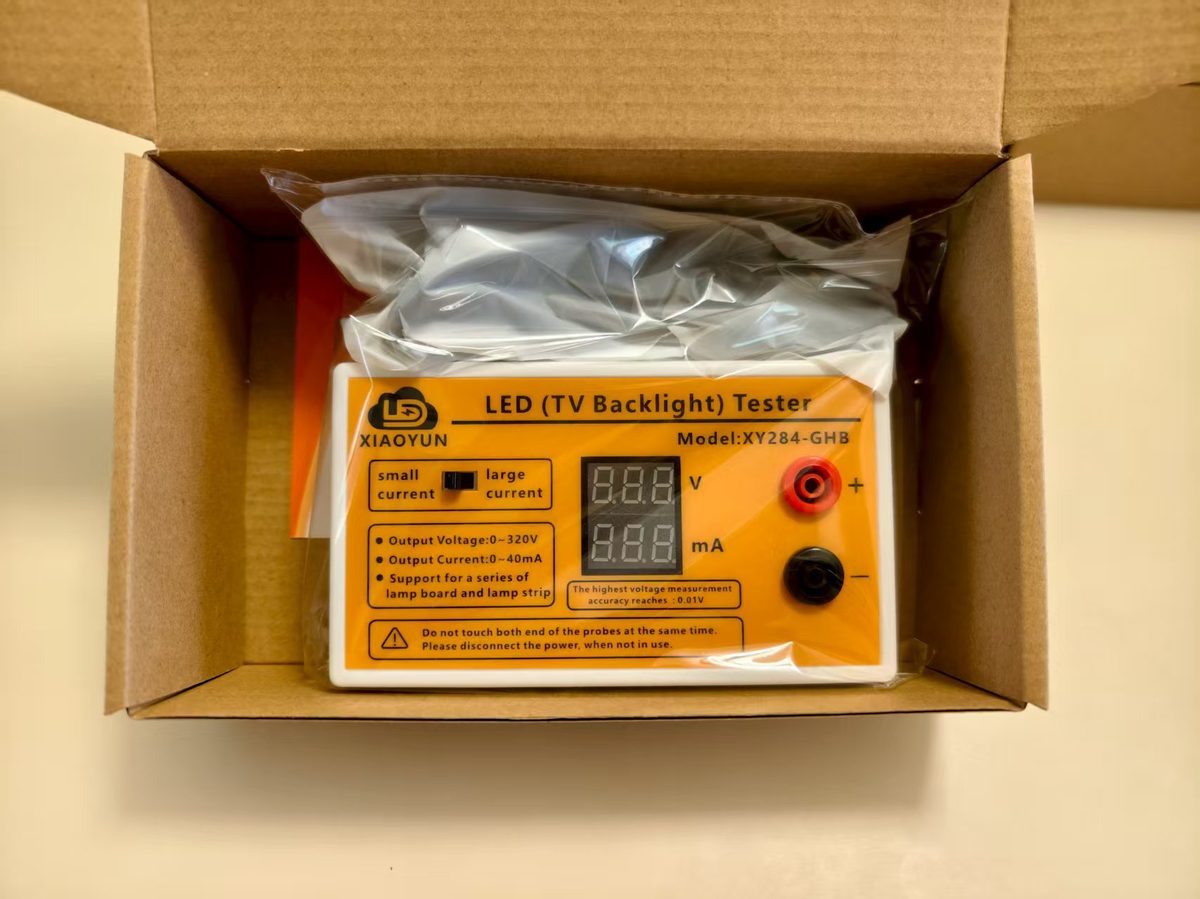

- 随机含主机、电源线与表笔（以实际包装清单为准）
- 警告：测试时请勿同时接触表笔两端
- 长期不用时请断开电源
- Export carton printed "LED LAMP BEAD TESTER" for bulk shipping
- 30 pcs: 45.5 × 34 × 41 cm, approx. 8.7kg; 50 pcs: 59 × 45 × 41 cm, approx. 14.2kg
- Host unit, power cord and probes included (confirm packing list)
- Warning: never touch both probes at the same time
- Unplug when unused for long periods
相关型号
Related models
需要更大电流点亮大功率灯珠选 CF300；需要漏电检测与双表头选 CB250；经典入门款选 CA250。
Choose CF300 for higher current on high-power beads, CB250 for leakage detection with dual meters, or CA250 as the classic entry model.
