PWM 太阳能控制器
核心功能（说明书）
Core features (manual)
- BLE 低功耗蓝牙：手机 App 无线直连，对光伏板、蓄电池与直流负载全景监控
- 48 小时电池历史曲线：回看运行轨迹，判断电池是否偏小、负载是否过重、光伏是否不足
- 充放电电流限值可设：控制充电强度、降低过充与电池发热风险，并在负载异常电流时保护输出，对没有保护板的电池系统尤其友好

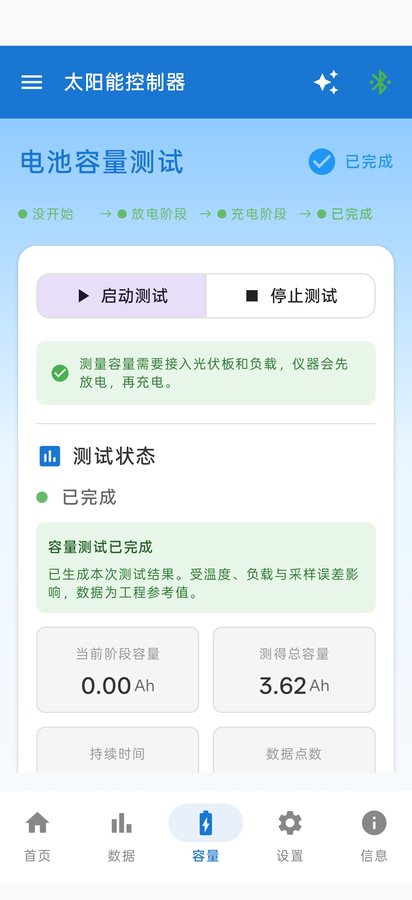

- 容量测试与参数配置：App 内完成容量测试流程与深度参数设置
- 五阶段充电：预充 → 恒流 → 恒压 → 浮充 → 均衡，兼容密封铅酸、胶体、锂电、LiFePO₄ 与自定义类型
- 12V / 24V 自动识别，全铝散热底座与多重安全防护
- BLE Bluetooth: direct phone connection for full monitoring of panel, battery and DC load
- 48-hour battery history curve reveals whether the battery is undersized, the load too heavy or the array too small
- Adjustable charge and discharge current limits reduce overcharge and heating, and protect the output during abnormal load current — especially useful for packs without a BMS
- Capacity testing and parameter setup right in the app
- Five-stage charging: pre-charge, bulk, absorption, float and equalise, for sealed lead-acid, gel, lithium, LiFePO₄ and custom types
- Automatic 12V / 24V detection, full aluminium heatsink base and layered protections
BSC301 App 固定入口BSC301 App Permanent Entry
扫码进入下载中心，按手机系统选择 Android APK 或 iOS App Store。Scan to open the download center, then choose Android APK or iOS App Store.
BSC301 App
手机 App 监控与参数设置
Mobile app monitoring and settings

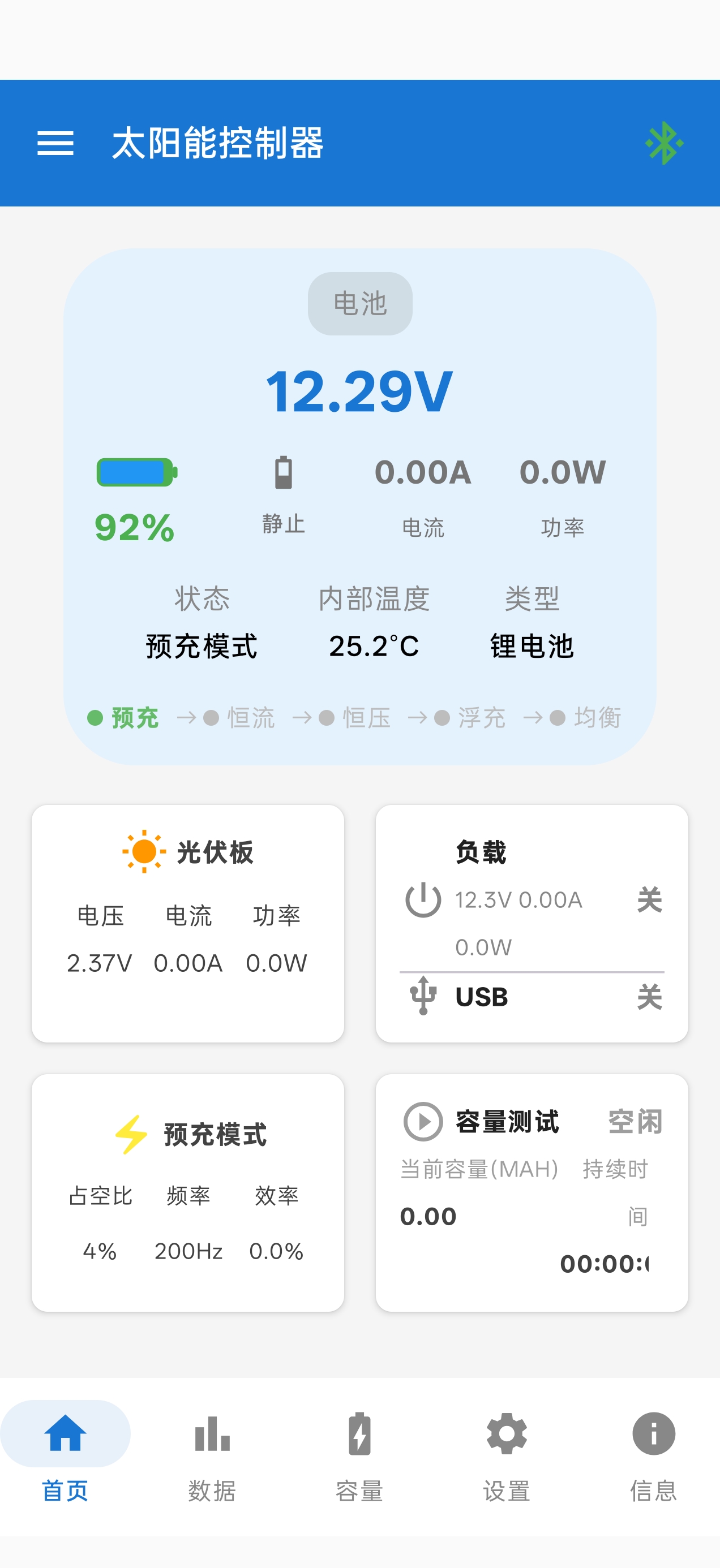

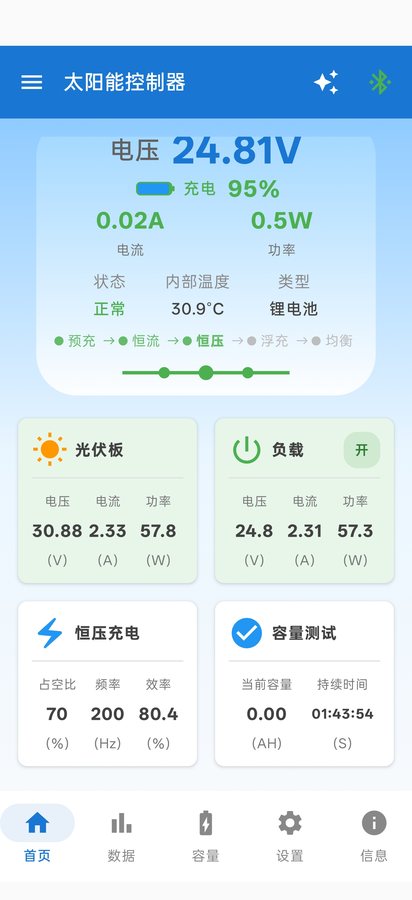

BSC301P 通过蓝牙连接手机 App，可查看控制器工作状态、电池电压、充电功率、负载输出与历史统计。客户扫码进入固定 App 下载中心后，可按手机系统选择 Android APK 或 iOS App Store 入口。
BSC301P connects to the mobile app by Bluetooth for controller status, battery voltage, charge power, load output and historical statistics. Scan the fixed app entry page to choose Android APK or iOS App Store.
进入 App 下载中心 Open App Download Center 查看 BSC301 售后教程View BSC301 support tutorials

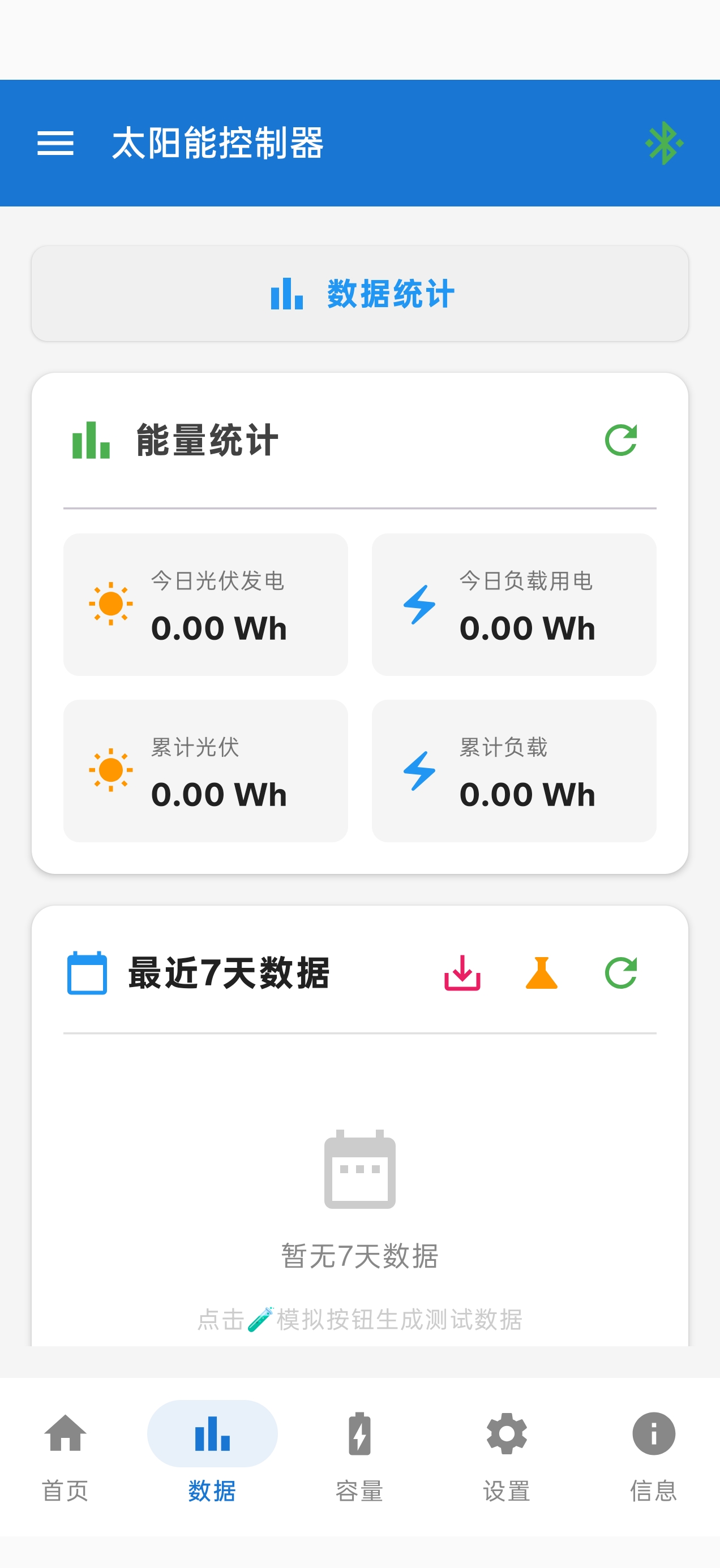

App 五个页签能做什么
What the five app tabs do

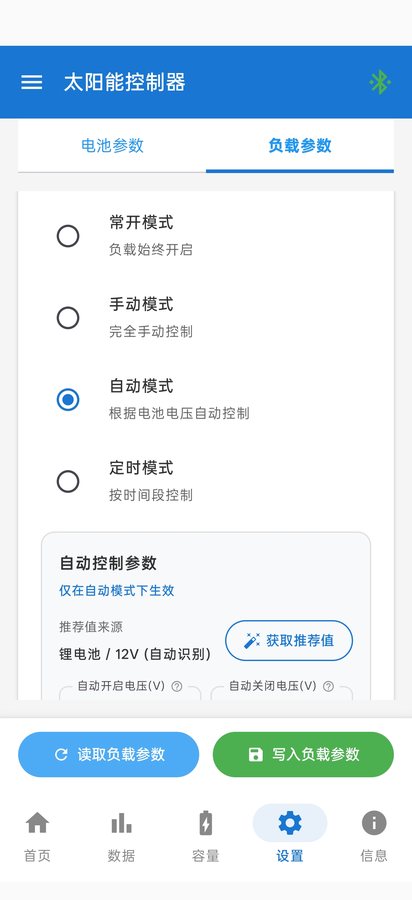

三种负载模式
Three load modes
- 手动模式：App 一键遥控开启或关闭负载
- 自动模式：根据电池电压自动控制启停
- 定时模式：支持设置 4 段定时时间
- Manual: switch the load on or off from the app
- Automatic: start and stop based on battery voltage
- Timed: up to four scheduled periods

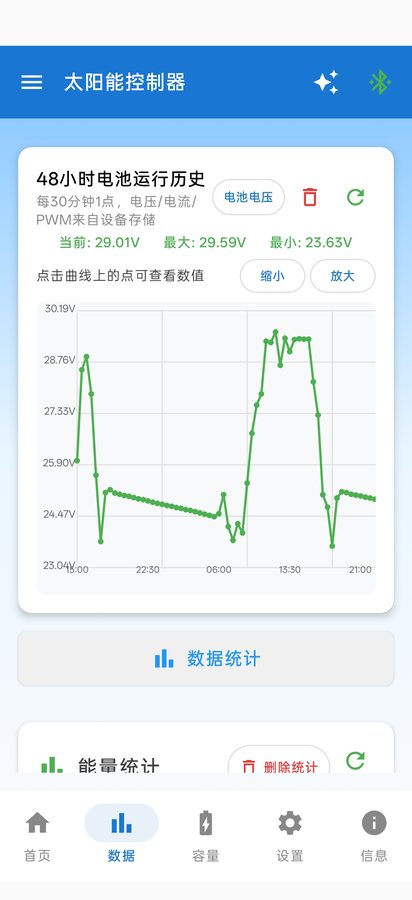

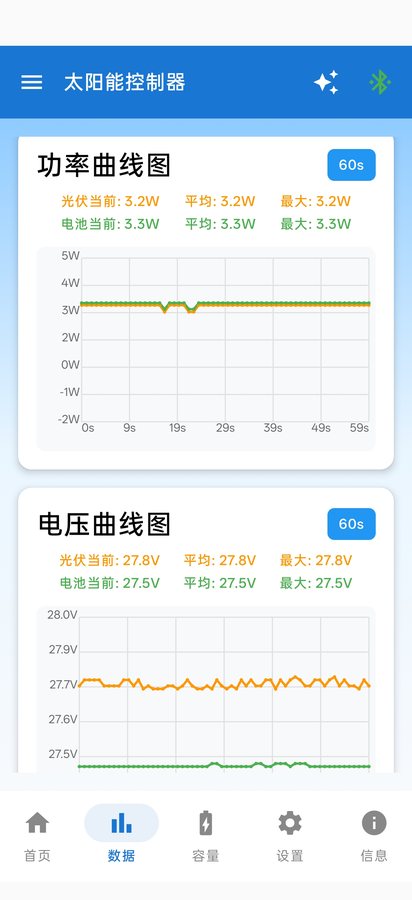

读 48 小时曲线的经验：若频繁接近亏电 / 低压保护区，说明电池可能偏小或负载过重；若长期难以充满，则光伏板可能偏小或日照不足。建议连接后先在信息 / 设置中同步设备时间与时区，以保证统计准确。
Reading the 48-hour curve: repeatedly hitting the low-voltage cutoff suggests an undersized battery or too much load, while never reaching full charge points to a small array or poor sunlight. Sync the device time and zone after connecting so statistics stay accurate.
面板结构与接口
Panel and interfaces

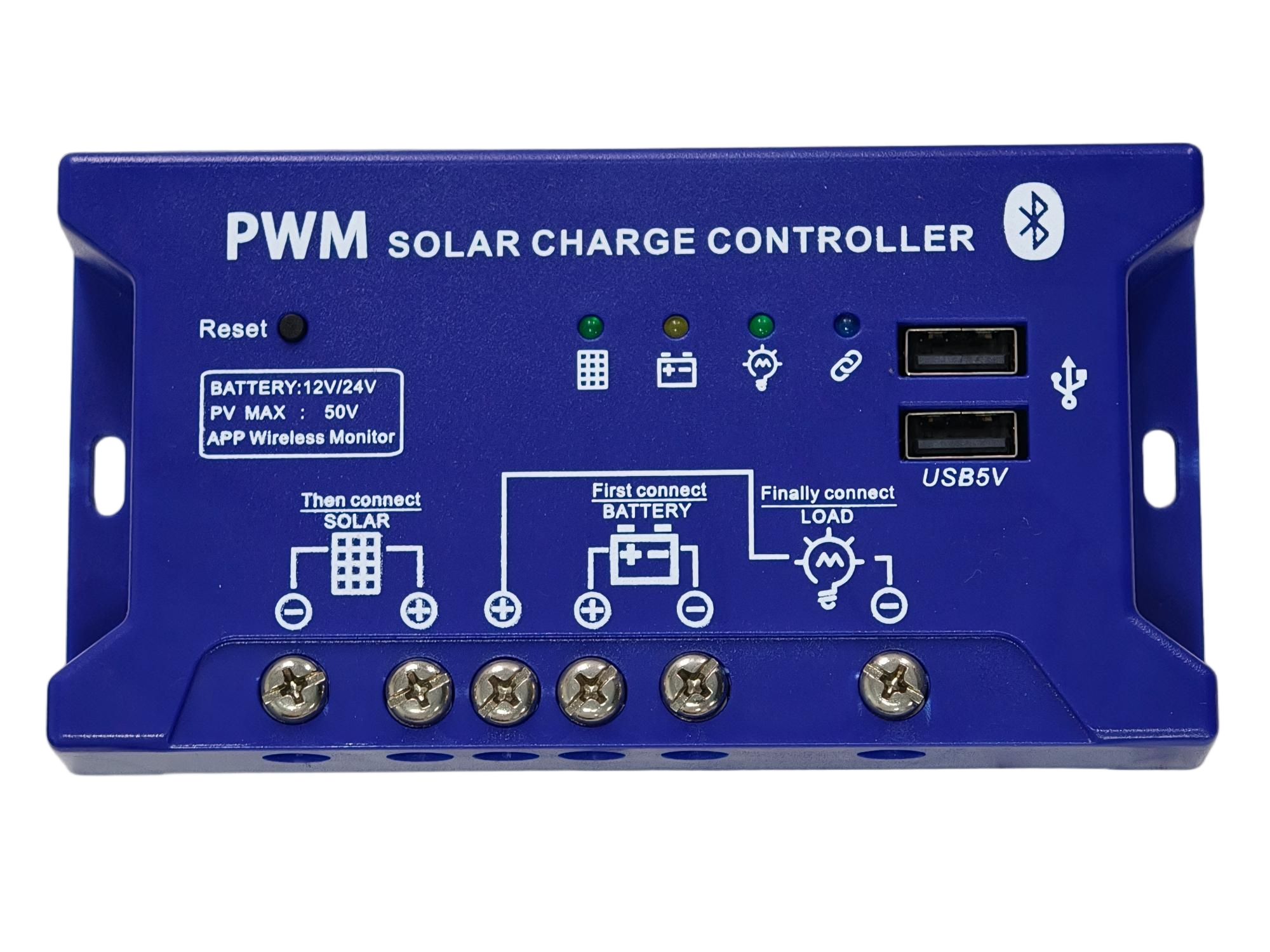

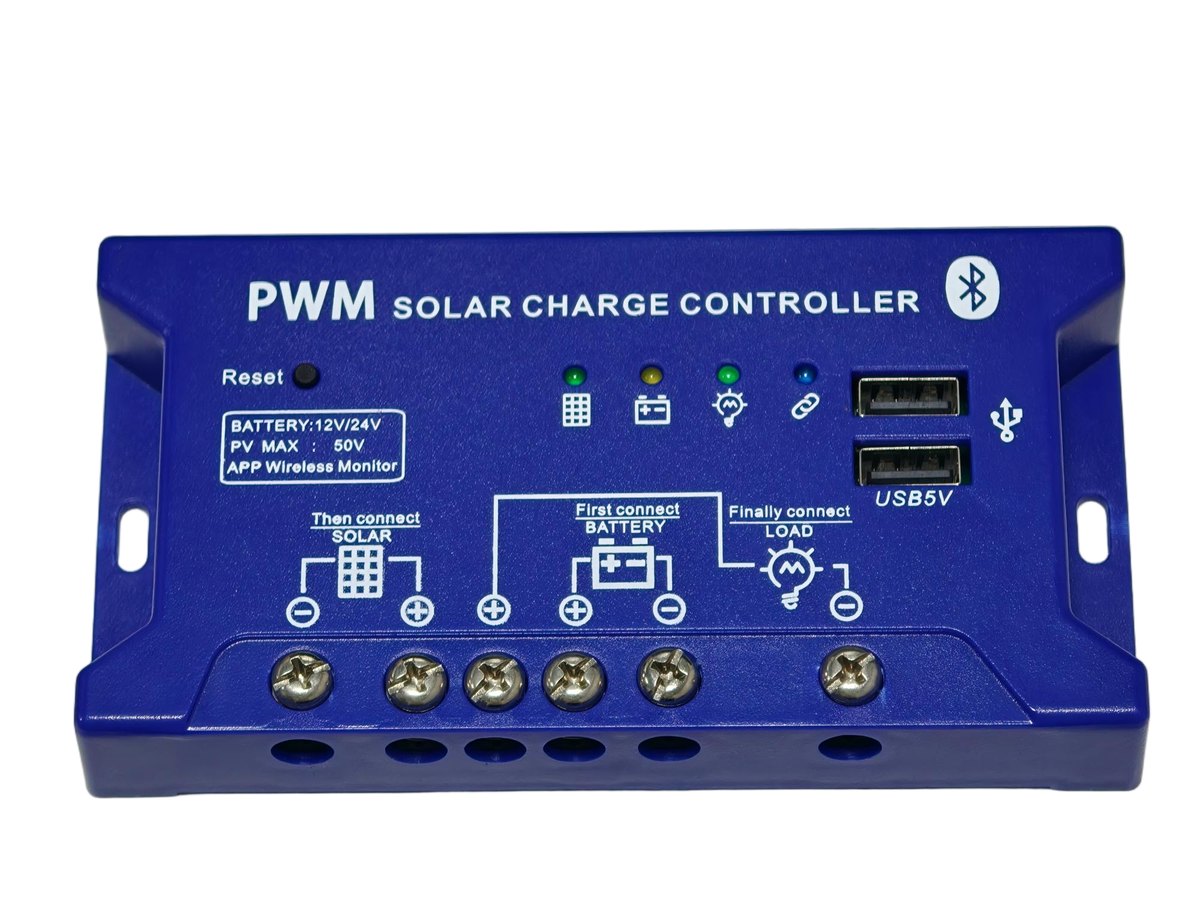

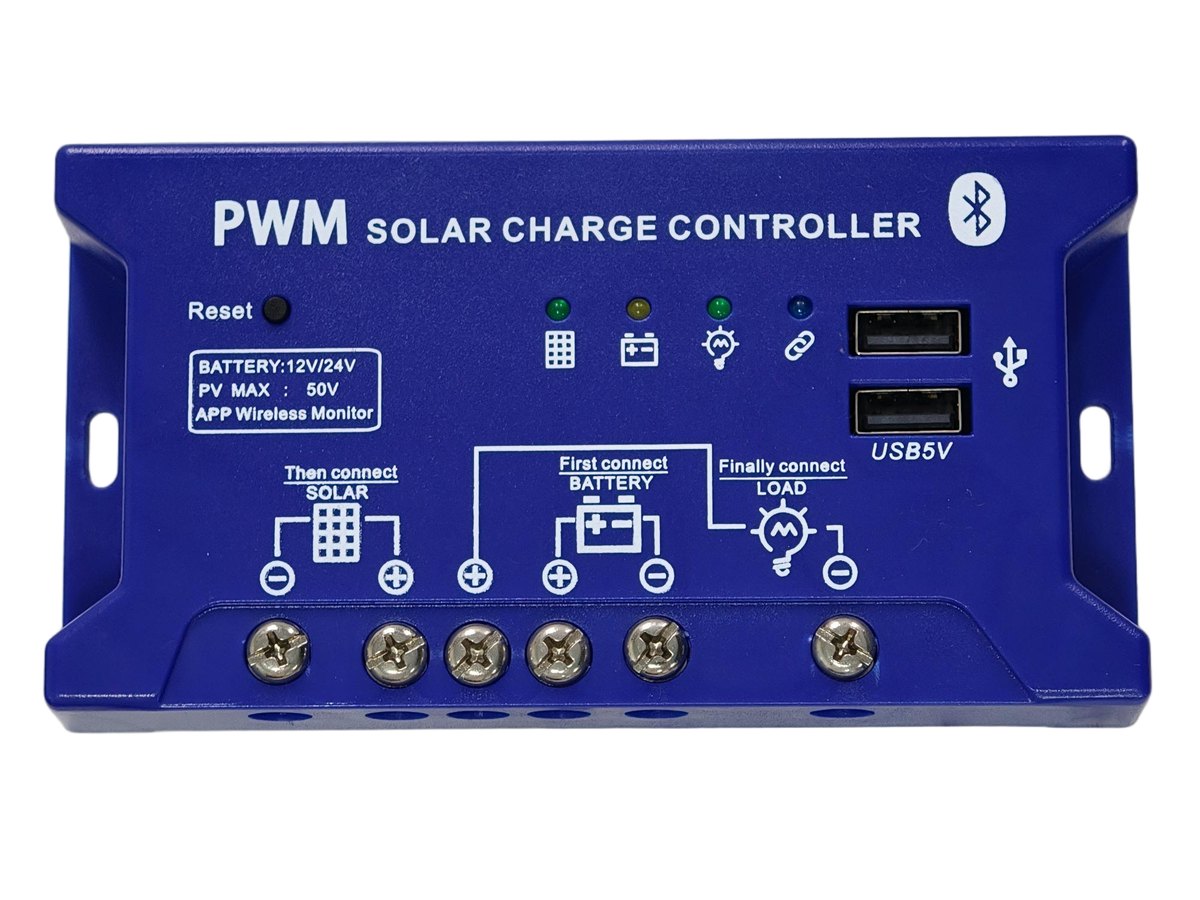

- 状态指示灯（4 盏）：依次为光伏、电池、负载、蓝牙；超低压深度待机时可能全部熄灭
- 双 USB：侧面 5V/2A，可在 App 内控制输出开关
- 复位键 Reset：异常时复位，深度待机唤醒见完整版说明书

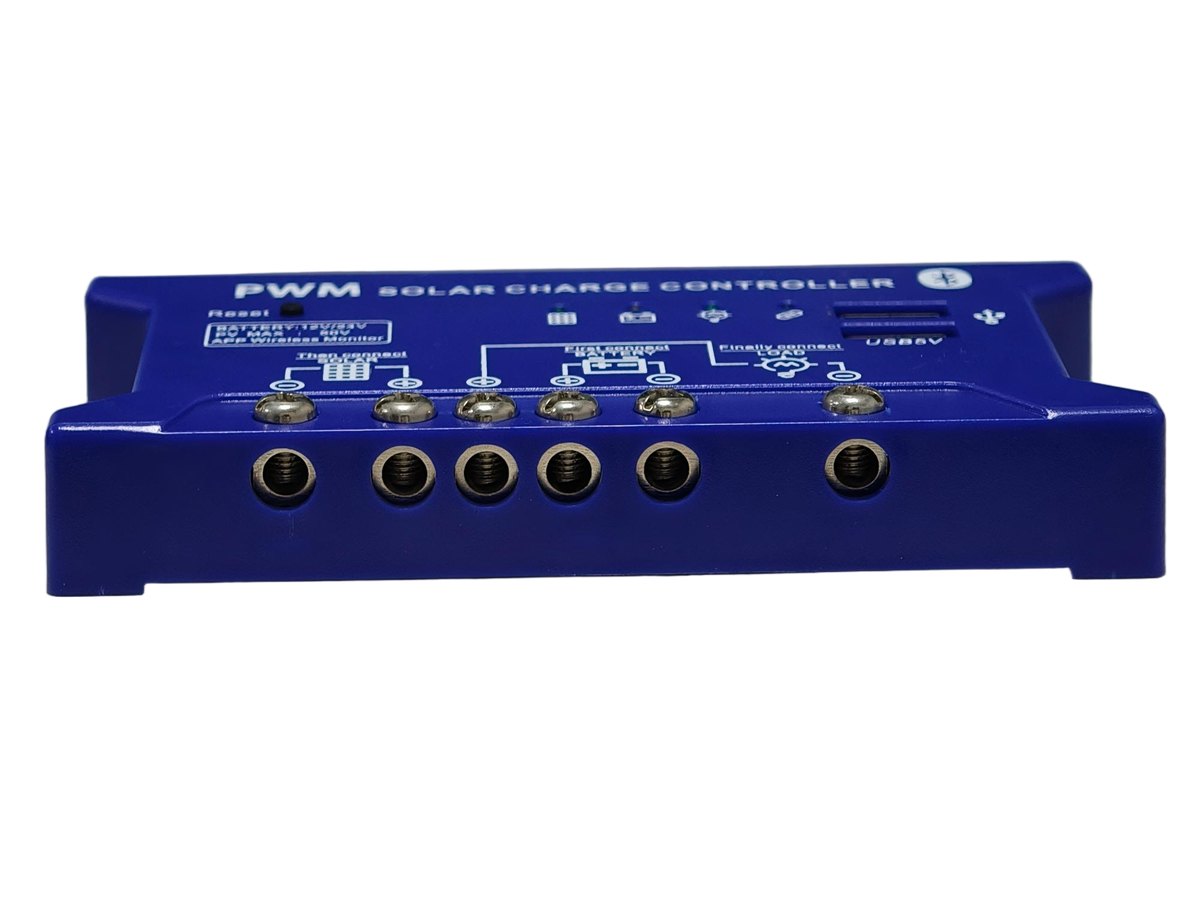

- 接线端子：BATTERY / SOLAR / LOAD 正负极，须按面板丝印顺序连接

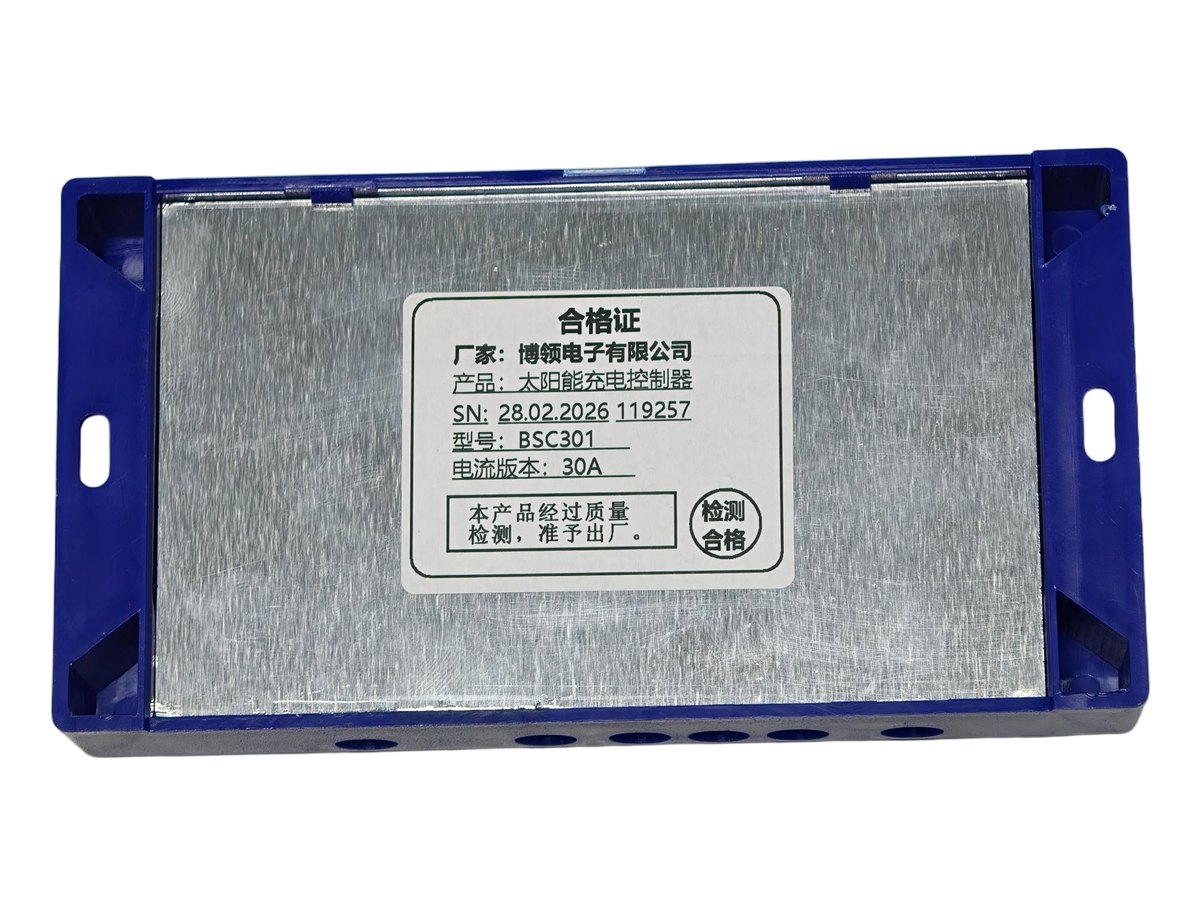

- 全铝散热底座：背面铝板利于散热
- Four status LEDs for PV, battery, load and Bluetooth; all may go dark in deep standby
- Dual USB at 5V/2A on the side, switchable from the app
- Reset button for fault recovery; see the full manual for deep-standby wake-up
- Terminals for BATTERY, SOLAR and LOAD — follow the silkscreen order
- Full aluminium base for heat dissipation
| 指示灯LED | 状态含义Meaning |
|---|---|
| 光伏PV | 灭：未接入；常亮：已接入；慢闪：正常充电；快闪：异常或保护 Off: not connected. Solid: connected. Slow blink: charging. Fast blink: fault or protection |
| 电池Battery | 常亮：正常；快闪：低压、过压等异常Solid: normal. Fast blink: under- or over-voltage |
| 负载Load | 灭：关；常亮：开；慢闪：放电中Off: disabled. Solid: enabled. Slow blink: discharging |
| 蓝牙Bluetooth | 快闪：广播待连；常亮：已连接Fast blink: advertising. Solid: connected |
安装接线规范
Wiring procedure
警告：接线错误可能烧毁设备，必须按面板丝印顺序接线，拆卸时按相反顺序。
Warning: incorrect wiring can destroy the unit. Follow the silkscreen order when connecting and reverse it when disconnecting.
- 连接蓄电池：正负极接 BATTERY 端子，成功后指示灯亮起，系统自动识别 12V / 24V
- 连接太阳能板：正负极接 SOLAR 端子，有阳光时显示充电
- 连接直流负载：正负极接 LOAD 端子
- Battery first: wire to the BATTERY terminals; the LEDs light up and the system detects 12V or 24V
- Then the panel: wire to SOLAR; charging shows once there is sunlight
- Finally the DC load on the LOAD terminals
- 光伏开路电压勿超 50V，严禁接入市电
- 深度待机后蓝牙会中断，可能需要硬件复位唤醒
- 恢复出厂会清除配置、日志与统计，请谨慎操作

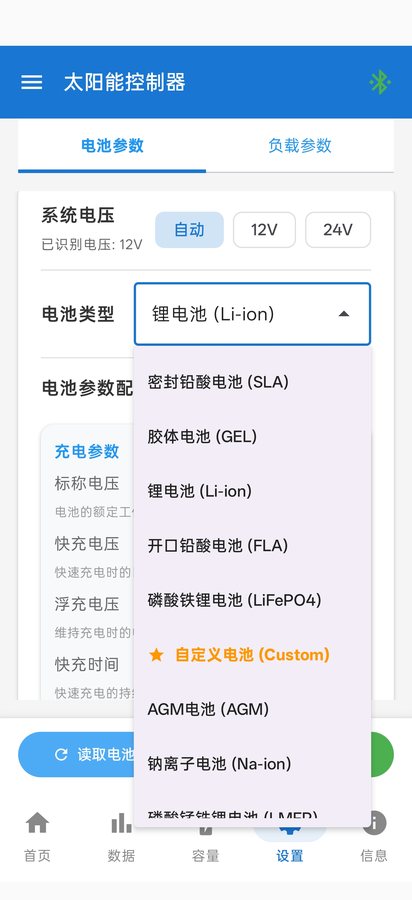

- 首次上电请在 App 内设置电池类型
- Keep PV open-circuit voltage under 50V and never connect mains power
- Bluetooth drops in deep standby; a hardware reset may be needed to wake the unit
- A factory reset erases configuration, logs and statistics
- Set the battery type in the app at first power-up
常见问题与排查
Troubleshooting
| 故障现象Symptom | 排查与解决办法What to check |
|---|---|
| 蓝牙搜不到或难连接Cannot find or connect over Bluetooth | 确认已上电且在广播；打开手机蓝牙与 App 权限；靠近设备后重试扫描 Confirm the unit is powered and advertising, enable phone Bluetooth and app permissions, then rescan closer to the device |
| 连接后无实时数据Connected but no live data | 确认通知已订阅；在 App 通信调试页查看是否有收发记录 Check that notifications are subscribed and look for traffic on the app's debug page |
| 统计或曲线时间不准Wrong timestamps on stats or curves | 在信息 / 设置中同步设备时间与时区后再查看Sync device time and time zone, then reopen the view |
| 接上电池后设备不亮Dark after connecting the battery | 查正负极是否接反；电池是否亏电或损坏Check polarity, and whether the battery is flat or damaged |
| 白天不充电或负载异常No charging by day, or load misbehaving | 查光伏接线与遮挡；负载是否过流、短路或触发低压保护 Inspect PV wiring and shading; check the load for overcurrent, a short or low-voltage cutoff |
典型应用
Typical uses
离网太阳能路灯与监控立杆、小型户用光储、房车与船舶直流母线、应急备电等。选型时请提供组件功率、蓄电池容量与期望续航天数，以便确认线径、熔断与控制器额定电流是否匹配。
Street CCTV poles, small home off-grid, RV/marine DC buses and backup power. Share module power, battery Ah and autonomy targets for sizing.
综合技术参数（说明书）
Technical specifications (manual)
| 产品型号Model | BSC201 / BSC301 |
|---|---|
| 额定充电电流Rated charge current | 20A / 30A |
| 充放电电流限值Current limits | 可设置User configurable |
| 无线连接Wireless | BLE 低功耗蓝牙BLE Bluetooth |
| 负载电流Load current | 10A |
| 系统电压System voltage | 12V / 24V 自动识别12V / 24V auto |
| 待机功耗Standby draw | 约 8mAabout 8mA |
| 光伏最高电压Max PV voltage | 50V |
| 设备重量Weight | 约 145gabout 145g |
| USB 输出USB output | 5V / 2A |
| 尺寸Dimensions | 132 × 73 × 22 mm |
| 工作温度Operating temperature | -20℃ ~ +55℃ |
| 说明书 / 固件Manual / firmware | V100 / V6.8.0 |
本系列包含 P 型（以 PWM 控制为主）与 M 型（具备 MPPT 相关状态与测试能力）。功能以实物与最新固件为准。
The series covers the P type (PWM control) and the M type (with MPPT status and test capability). Features follow the shipped unit and latest firmware.
