工作电压 220VAC ±10%
220VAC ±10% supply
核心能力
What it does
- 一键暴力极速老化：模拟各种极端老化环境，快速检测出问题电源，显著提高老化效率
- 读取单个电源数据：更准确地查看电源烧坏时已老化的次数，据此判定质量性能
- 时间与次数双计量：老化时长按时:分显示，也可切换为老化次数计数
- 通断时长可调：持续导通时长与持续关断时长以秒为单位分别设置
- 实时电参数：输入电压、负载功率与平均功率因数同屏显示
- One-button extreme ageing simulates harsh conditions to expose weak drivers fast
- Per-unit data readout shows exactly how many cycles a driver survived before failing
- Time or cycle counting — duration in hours:minutes, or a cycle counter
- Adjustable on and off durations, each set in seconds
- Live electrical readings: input voltage, load power and average power factor
为何需要单独沟通型号
Why contact sales
老化舱体结构、工位数、温控与负载接口随项目差异较大。网站仅作能力说明；请提供被测对象类型（裸电源 / 成品灯 / 灯板）、目标节拍、是否需数据记录或 MES 对接，以便提供报价与图纸。
Chamber size, stations, thermal profile and load interfaces vary by project. Share DUT type, takt time and data/MES needs for a quote.
LHX 系列 · 三种功率版本
LHX series · three power versions
按负载规模选择功率版本
Choose the version for your load
整机默认使用 AC 220V。以下标称负载功率按功率因数 PF = 0.90 计算；负载功率因数越低，可带的有功功率应相应降低。
The standard chamber supply is AC 220V. Ratings below are based on PF = 0.90; reduce the allowable real load power when the load power factor is lower.
8kW 版本
8kW version
标准常规出货配置，适合多数灯具、电源的批量老化。
Our standard, most commonly supplied version for routine batch ageing.
- 220V
- 8000W
- 110V
- 4000W
- 主线
- Main cable
- 6mm²
- 空开
- Breaker
- 63A
- 接触器
- Contactor
- 25A 三极并联25A, 3 poles paralleled
12kW 版本
12kW version
适合负载规模较大、需要更高容量余量的批量老化。
For larger batch loads that require more capacity headroom.
- 220V
- 12000W
- 110V
- 6000W
- 主线
- Main cable
- 10mm²
- 空开
- Breaker
- 63A
- 接触器
- Contactor
- 32A 三极并联32A, 3 poles paralleled
20kW 版本
20kW version
适合大批量、高总功率负载及扩展余量要求较高的场景。
For larger batches, higher total loads and extra capacity margin.
- 220V
- 20000W
- 110V
- 10000W
- 主线
- Main cable
- 16mm²
- 空开
- Breaker
- 100A
- 接触器
- Contactor
- 65A 三极并联65A, 3 poles paralleled
110V 负载说明：110V 版本需要把控制供电与老化负载供电分开；控制回路及接触器线圈仍使用 220V，负载主回路改接 110V。请在下单时说明。
110V load configuration: the control circuit and contactor coils remain on 220V, while the ageing-load circuit uses a separate 110V supply. Specify this requirement when ordering.
配电说明：接触器采用三极主触点并联作为一个开关；输入和输出主线均为单根导线。现场进线、端子、插座及保护器件仍须按实际电流和安装条件核定。
Power-path note: the contactor's three main poles are paralleled to operate as one switch; the input and output main cables are single conductors. Final cable, terminal, socket and protection sizing must be checked for the installation conditions.

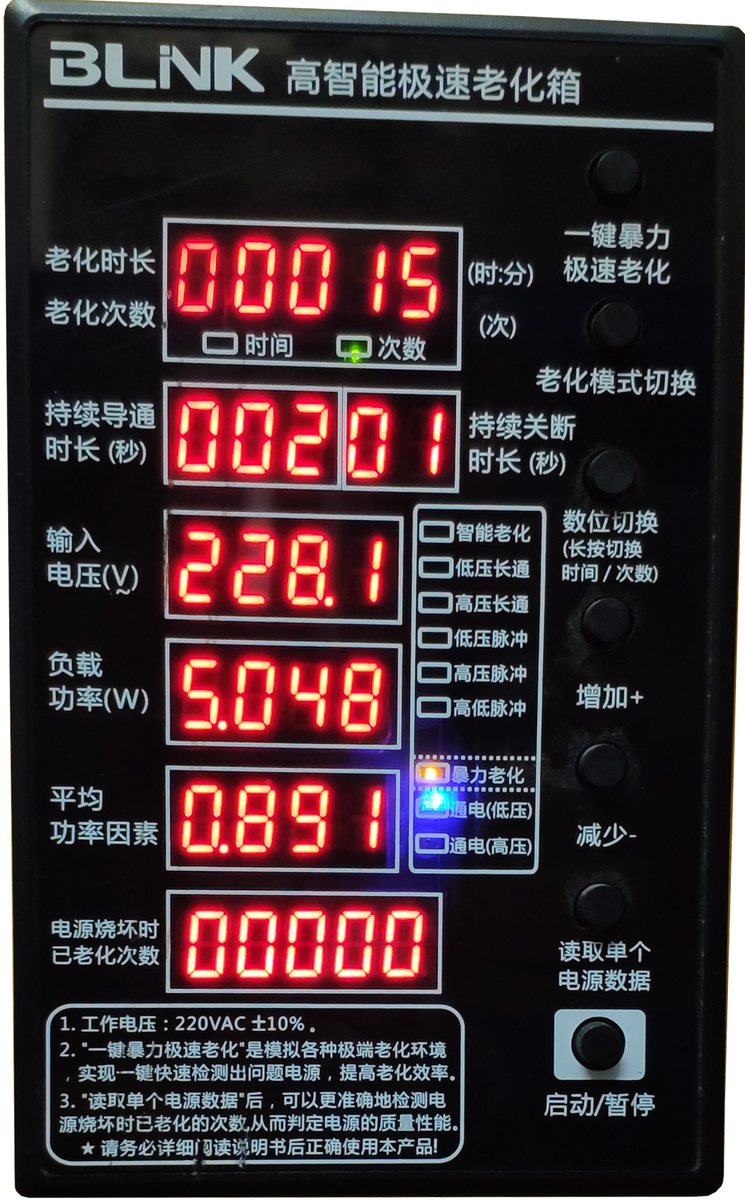

控制面板
Control panel
面板左侧为数码显示区，右侧为操作按键。长按「数位切换」可在时间与次数之间切换计量方式；「增加+」「减少-」调整当前选中的数值；「读取单个电源数据」用于查看单个工位的老化结果；「启动/暂停」控制老化流程。
Readouts sit on the left, controls on the right. Hold the digit key to switch between time and cycle counting, use plus and minus to edit the selected value, press the readout key to inspect a single station, and start or pause the run with the main button.
九种老化模式
Nine ageing modes
- 智能老化
- 低压长通 / 高压长通
- 低压脉冲 / 高压脉冲 / 高低脉冲
- 暴力老化
- 通电（低压）/ 通电（高压）
- Smart ageing
- Low-voltage or high-voltage continuous
- Low-voltage, high-voltage or alternating pulse
- Extreme ageing
- Power-on at low or high voltage
面板读数
Panel readouts
| 老化时长 / 次数Duration / cycles | 按时:分显示老化时长，或切换为老化次数Hours:minutes, or a cycle count |
|---|---|
| 持续导通时长On duration | 以秒为单位设置每次通电时长Seconds of power-on per cycle |
| 持续关断时长Off duration | 以秒为单位设置每次断电时长Seconds of power-off per cycle |
| 输入电压Input voltage | 实时显示供电电压（V）Live supply voltage in volts |
| 负载功率Load power | 实时显示被测负载功率（W）Live load power in watts |
| 平均功率因数Average power factor | 实时显示负载的平均功率因数Running average power factor of the load |
| 烧坏时已老化次数Cycles before failure | 电源烧坏时自动记录已完成的老化次数Logged automatically when a driver fails |
| 工作电压Supply | 220VAC ±10% |

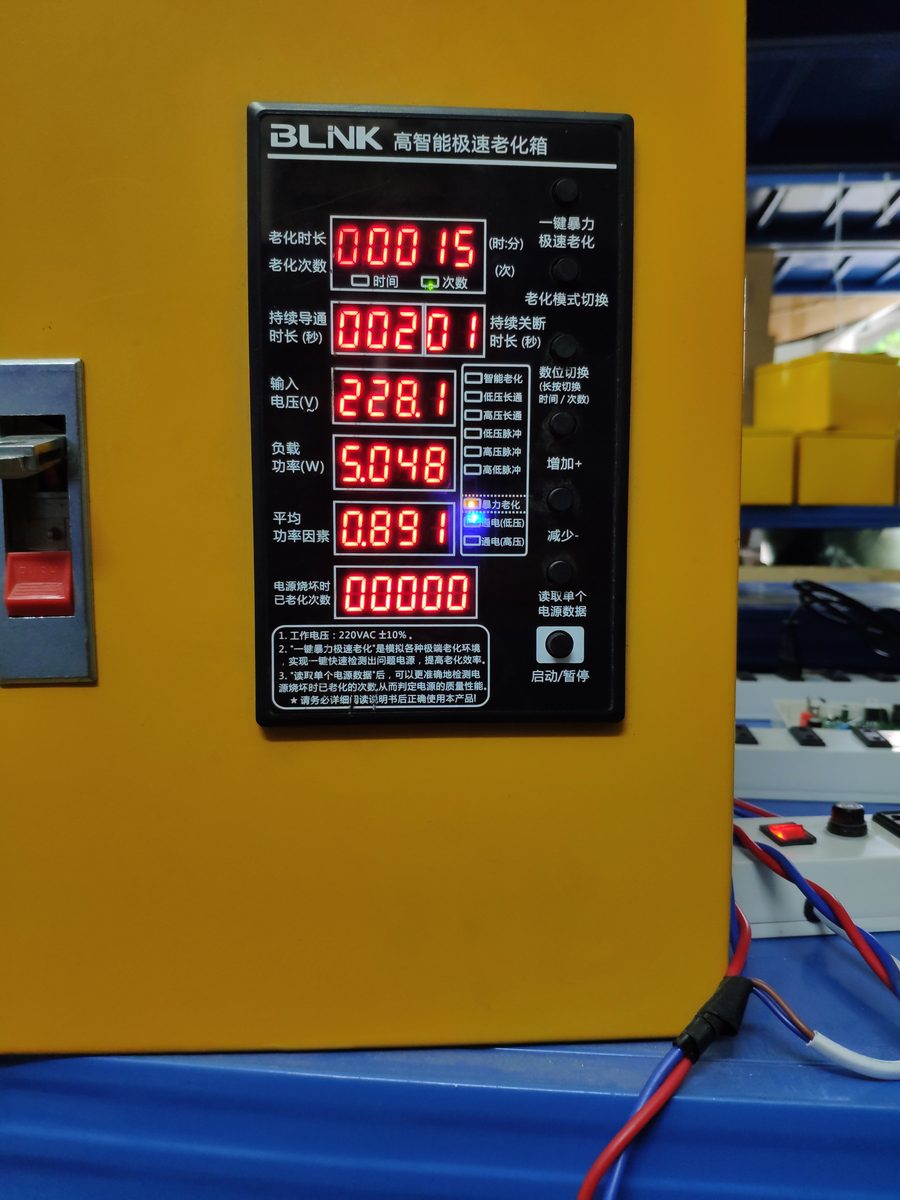

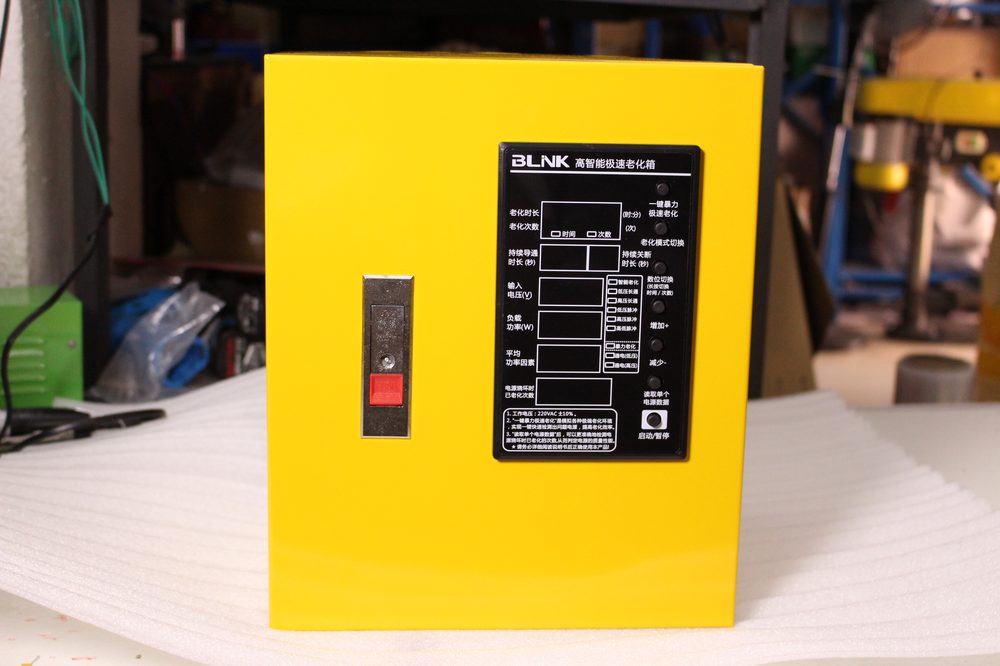

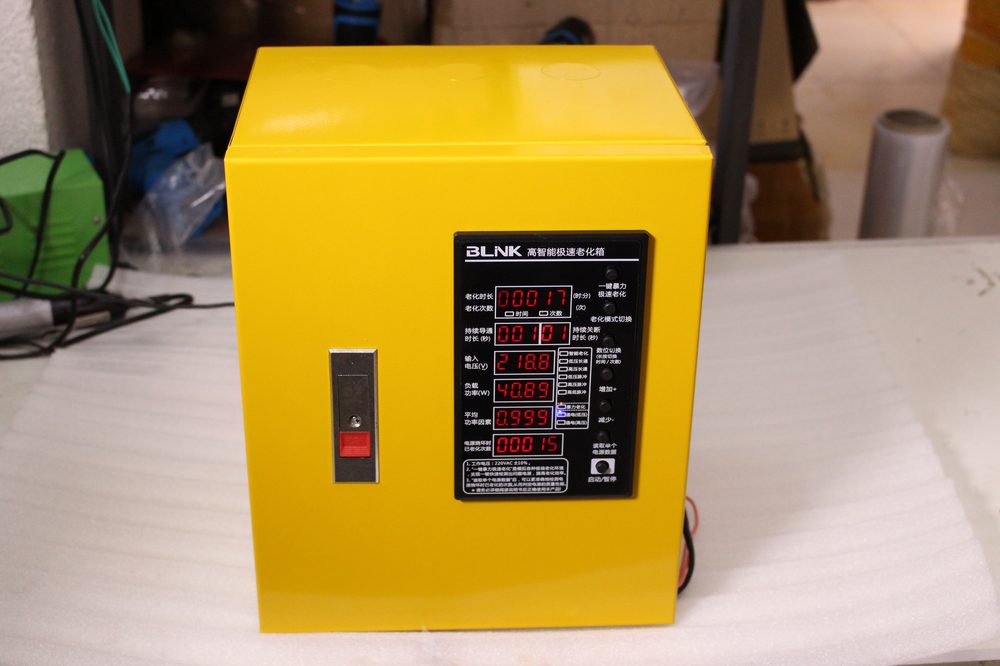

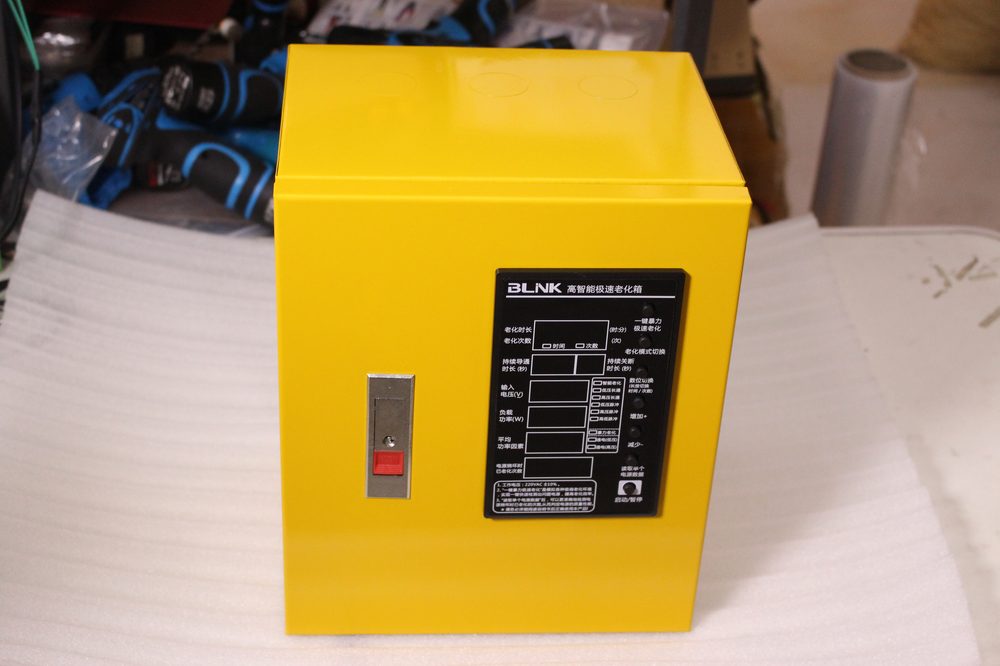

箱体与现场
Chamber and site photos
请务必详细阅读随机说明书后正确使用本产品。舱体结构、工位数与负载接口可按项目定制。
Read the supplied manual before use. Chamber size, station count and load interfaces can be tailored to the project.
